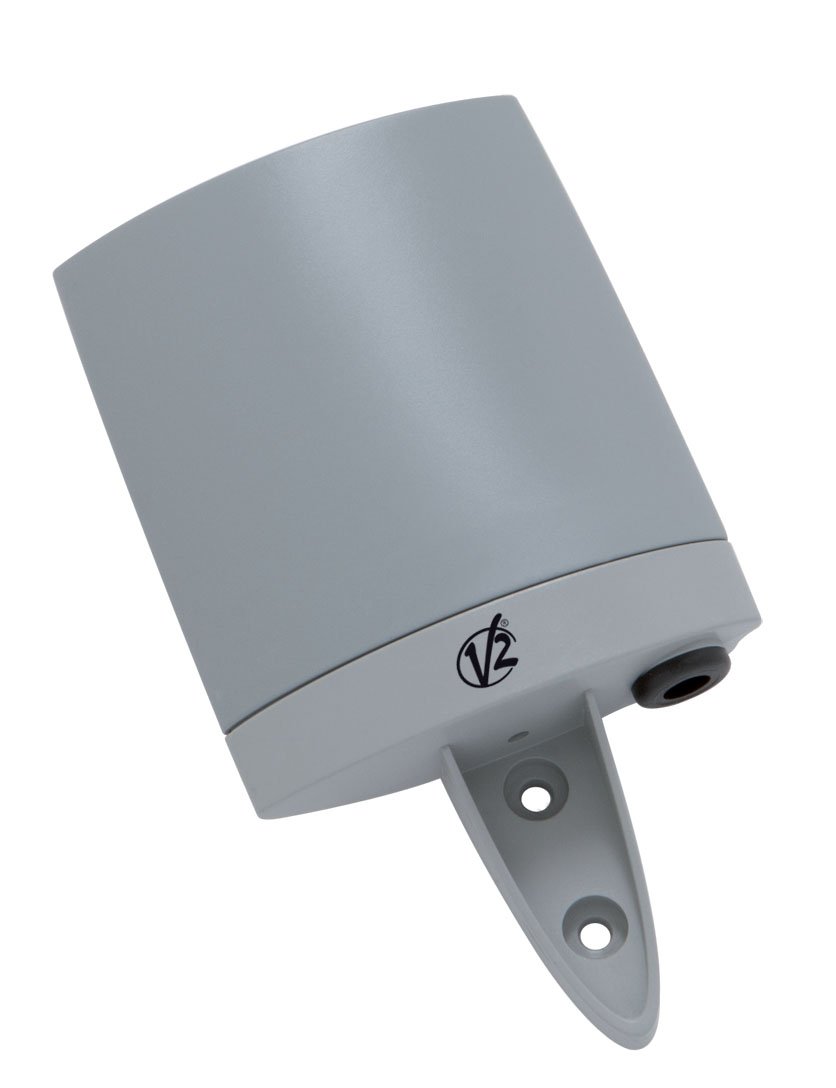

DEC-4 PLUS – Remote decoder

£159.70

Remote decoder

SKU 15D003 Category

Description

The dec4-plus is a remote decoder that has the possibility to store up to 2008 different codes and has sequential storing of access devices.

Features:

  • Programming via button and LED
  • 4 normally open output relays
  • Option to select the output type: monostable, step or timer
  • Sequential storing of access devices
  • Possibility to store up to 1008 different codes
  • Memory full warning
  • Basic programming using button or advanced programming using the PROG2 programming device and WINPPCL software
  • Plug-in terminal board

Technical Features

FEATURES UNIT 15D003
Power supply Vac/dc 12-24
Absorption in stand-by mA 17
Relay contact capacity A 1 @ 30 Vdc
Maximum data wire length m 100
Working temperature °C – 20 ÷ + 60
Protection degree IP 55
Dimensions mm 74 x 132 x 26

Downloads

DEC 4 TECH SPEC
