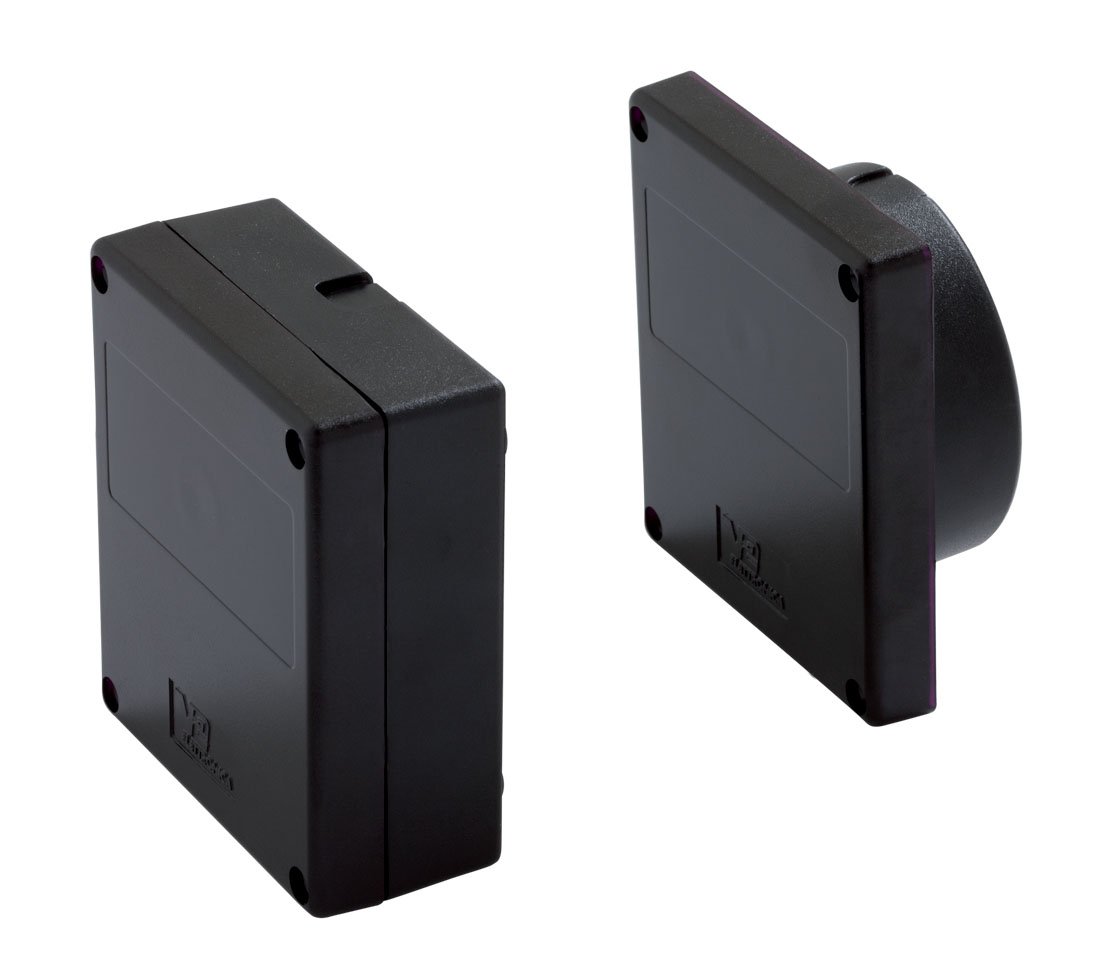

DFN – Synchronised, self-aligning wall-mounted andrecessed-mounted photocells

£85.48

Synchronised, self-aligning wall-mounted andrecessed-mounted photocells

SKU 13A001 Category

Description

DFN are synchronised, self-aligning wall – mounted photocells

Features:

  • Synchronised: the synchronism circuit allows the installation of two pairs of very close photocells, without them interfering with one another.
  • Secure : Immune to interface from sunlight

Technical Features

FEATURES UNIT 13A001
Optical range m 25
Dimensions mm 66 x 76 x 30
Power supply vachz Vac – Hz 12÷24 Vac / 12÷36 Vdc
Relay contact capacity A 1 (max 30 Vdc)
Working temperature °C -20 ÷ +60
Protection degree IP 54

Downloads

DFN TECH SPEC
