Sale!

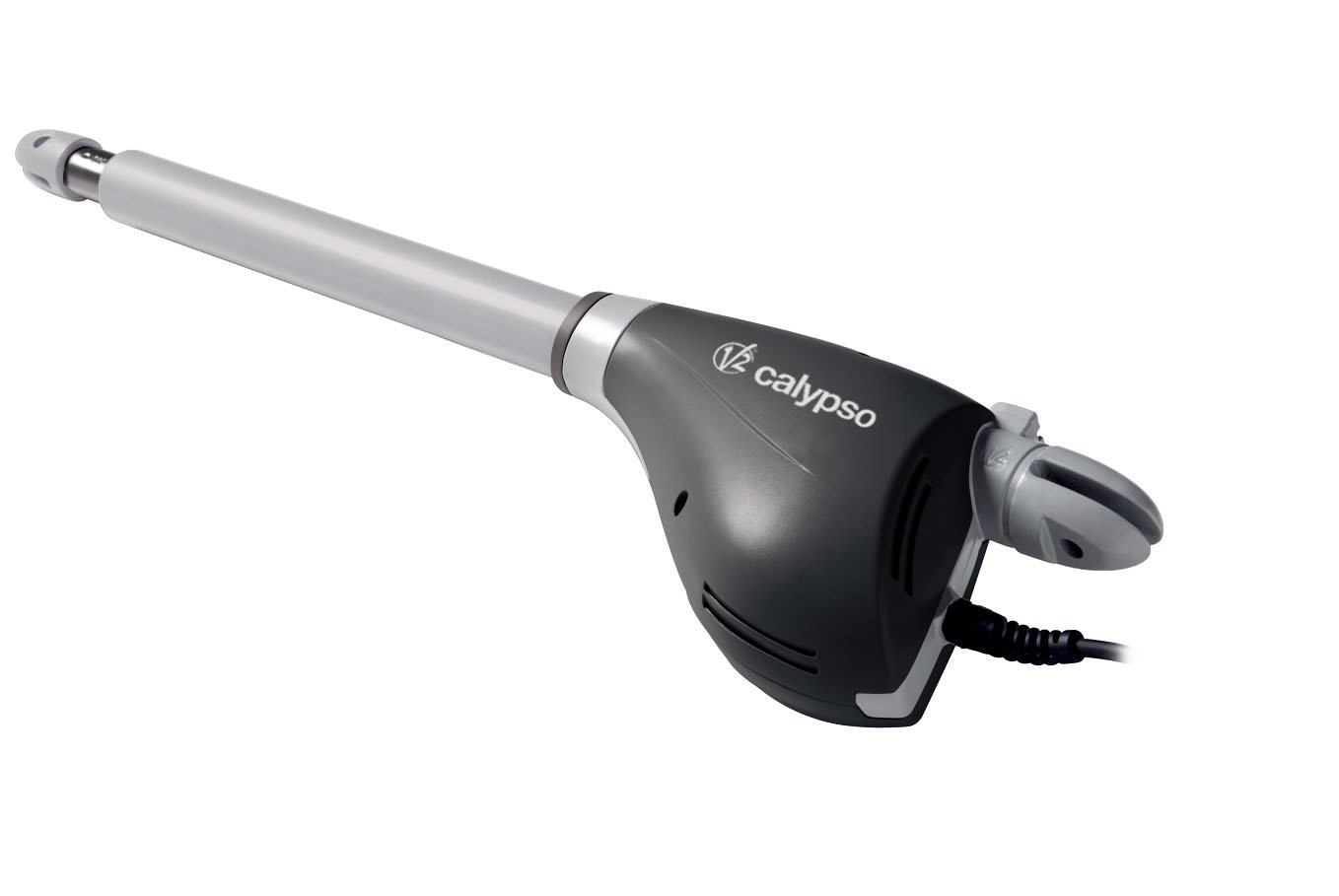

v2 CALYPSO

Price range: £179.99 through £239.99

A gate Kit motor for gate up to 3m and 600kg

SKU 22G001 Category

Description

Available in 3 versions, the calypso swinging gate motor has an option ideal for all. The 230v irreversible electromechanical actuator is for swing gates with leaves up to 4m in length. With a stainless steel shaft and a die-cast aluminium frame, this motor will create a modern look for your automated gate.

Features:

  • Single version for both left and right leaves.
  • Practical release system.
  • 400 version for leaves up to 2.5m
  • 500 version for leaves up to 3m
  • 600 version for leaves up to 4m

This motor is available to purchase as a kit, coming with everything needed for installation.

Additional information

Weight N/A
Options

, , , , , ,

Technical Features

FEATURES UNIT 22G001 22G003 22G016
Maximum leaf length m 2,5 3 4
Maximum leaf weight Kg 400 500 500
Power supply vhz V / Hz 230 – 50 230 – 50 230 – 50
Idling current A 0,8 0,8 0,8
Full load current A 1,2 1,2 1,2
Maximum power W 250 250 250
Opening time 0÷ 90° s 22 25 30
Maximum travel mm 400 500 600
Operating speed m/s 16 16 16
Maximum thrust N 2300 2300 2300
Working temperature °C -30 ÷ +50 -30 ÷ +50 -30 ÷ +50
Protection degree IP 44 44 44
Duty cycle % 30 30 30
Weight Kg 6,5 6,8 7,1

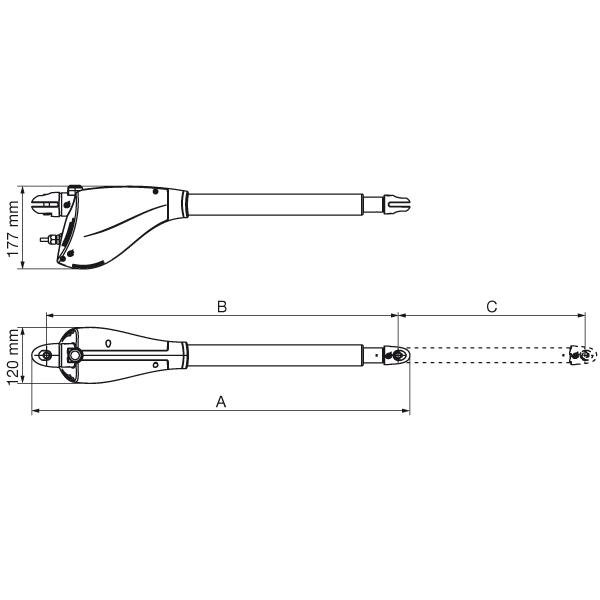

Dimensions

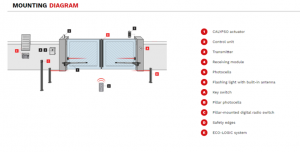

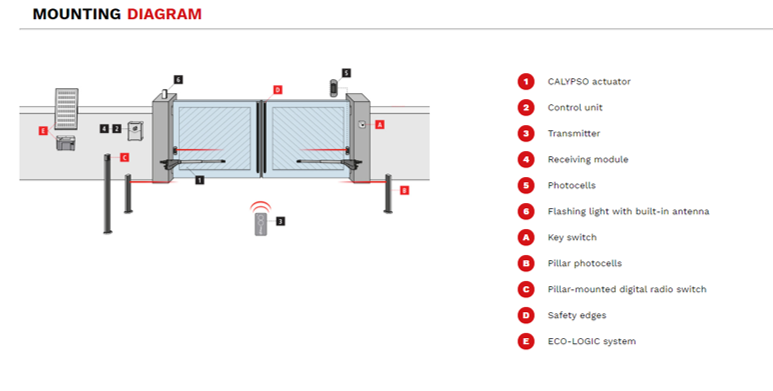

Mounting Diagram

Downloads

CALYPSO Technical Manual
